Irrigation Outlets

Pipe Irrigation Bay Outlets / Channel Stops

G&M Poly Pipe Bay Outlets are built to last and are available in a large range of sizes to suit all applications.

Irrigation outlets can be manually operated or fully automated. G&M Poly offer free, no obligation site visits and quotes to ensure you receive a suitable and cost-effective solution for your application.

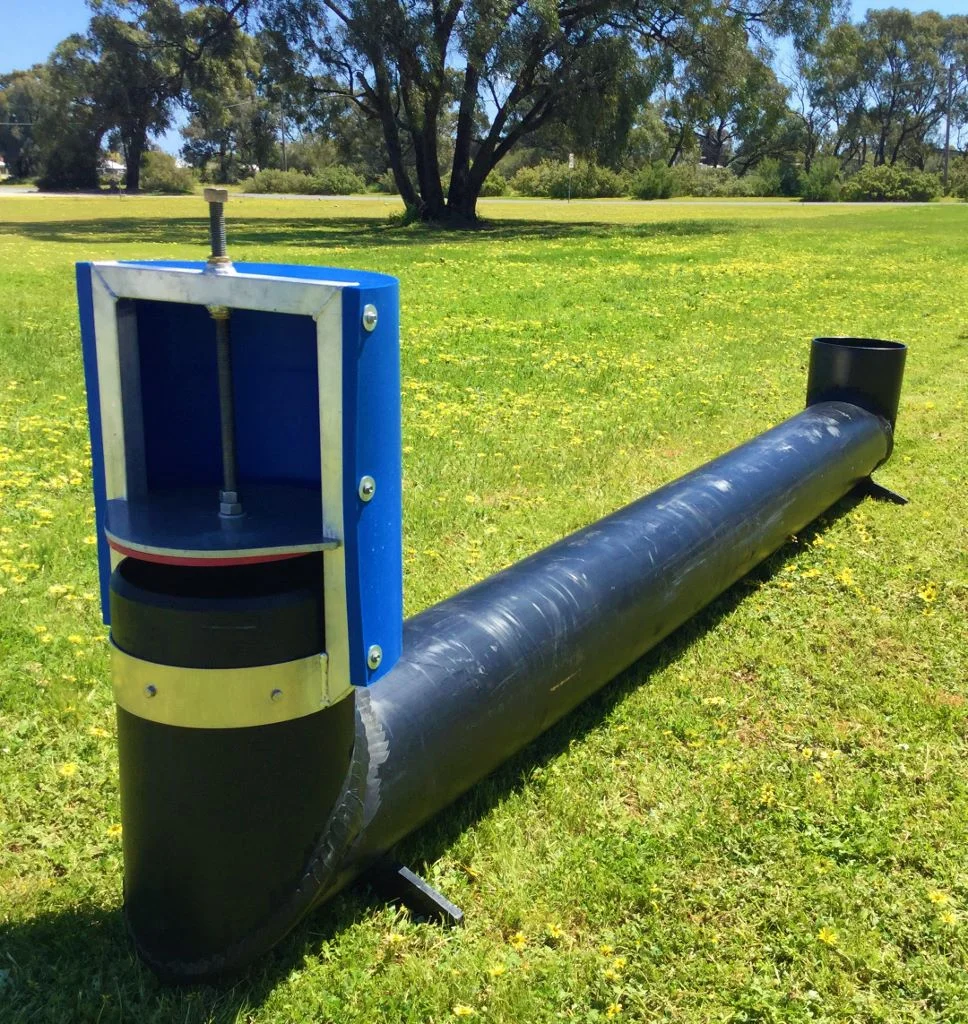

Irrigation bay outlet bay riser - G&M Poly Irrigation
Bay Riser Outlet with Upturn

Bay Riser

  • 100% seal. No leaks means no weeds and reduced soil saturation
  • Easy to operate
  • Very low maintenance
  • Perfect for pasture cropping, especially Lucerne
  • Available in pipe sizes 160mm – 1000mm
  • Able to be fitted to structural ribbed pipe
  • Delivers flows of up to 20 ML/day dependant on head pressure
  • Can be manually operated, semi- automated or fully automated with computer control and monitoring

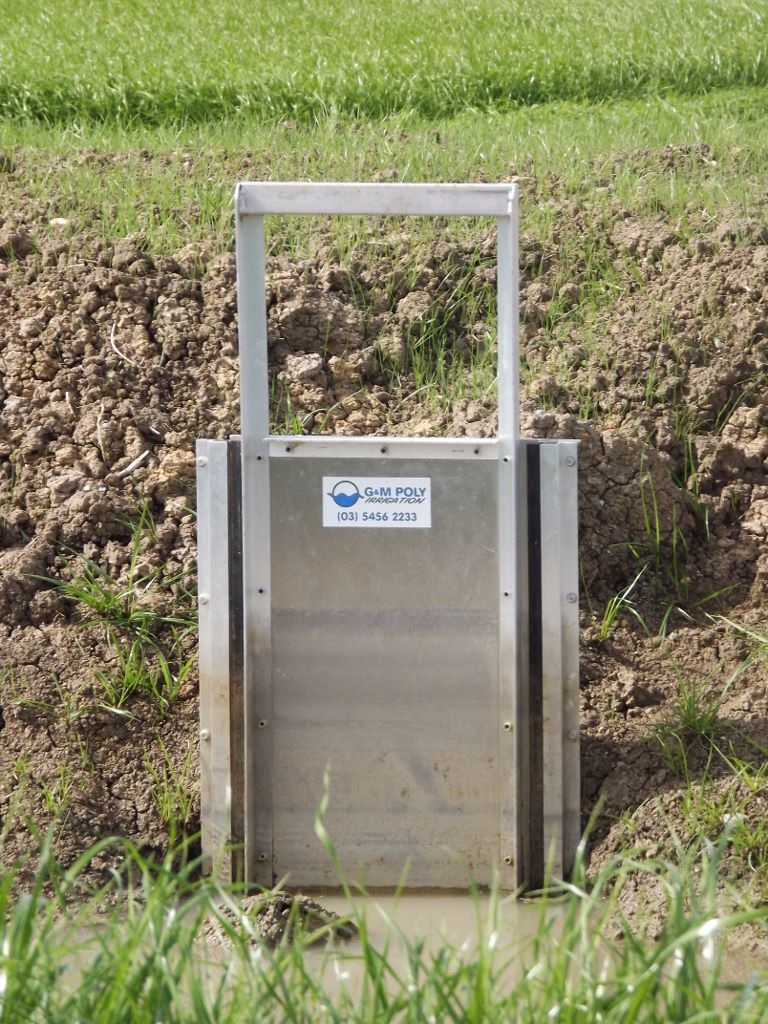

Irrigation bay outlet vertical slide - G&M Poly Irrigation
A5 Vertical Slide

A5 Vertical Slides / Channel Stops

  • Unique seal profile
  • Upstream and downstream application
  • Available in pipe sizes 160mm – 1000mm
  • Easily fitted to existing pipes
  • Collar made to fit all sizes of plastic, steel, concrete and clay pipes
  • Customised pipe lengths with straight cut or angled discharge
  • Lifting gear available
  • Also available at a 30deg angle
  • Can be manually operated, semi-automated or fully automated with computer control and monitoring

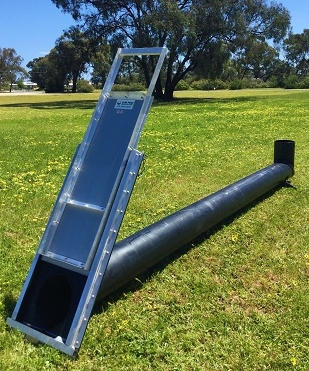

Irrigation bay outlet angled slide - G&M Poly Irrigation
A6 Angled Slide

A6 Aluminium Water Stop Angle

  • Constructed form marine grade aluminium with a polyethylene back
  • Designed to follow the angle of the channel bank
  • Easy to operate from bank
  • Available in pipe sizes 160mm – 630mm
  • Customised pipe length with straight cut or angled discharge
  • Lifting gear available
  • Can be manually operated, semi- automated or fully automated with computer control and monitoring

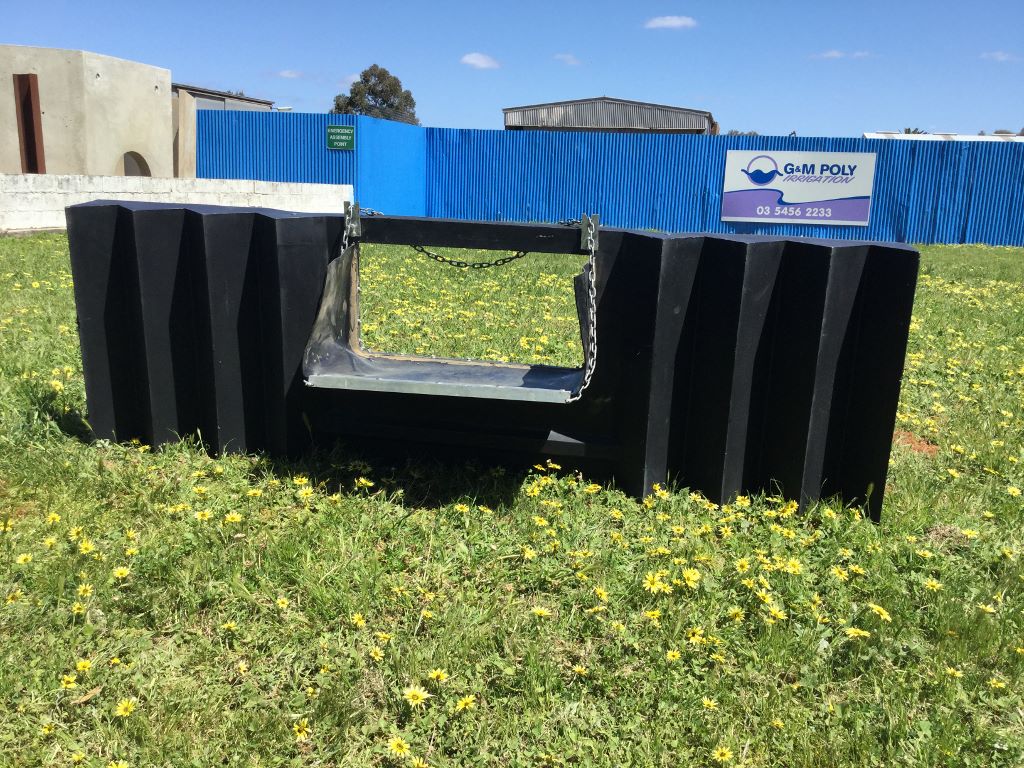

Irrigation bay outlet plasflow - G&M Poly Irrigation
Plasflow Bay Outlets

Plasflows

  • Durable poly won’t rot, crumble or break down
  • Unique corrugated profile locks dirt in place, reduces Yabbie leaks and washouts
  • Water tight seals with rubber flap door
  • Delivers water flows of 4 – 24 ML/day, dependant on size and head pressure
  • Winch lighting gear available
  • Easily automated

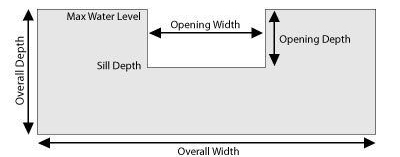

Irrigation bay outlet diagram - G&M Poly Irrigation

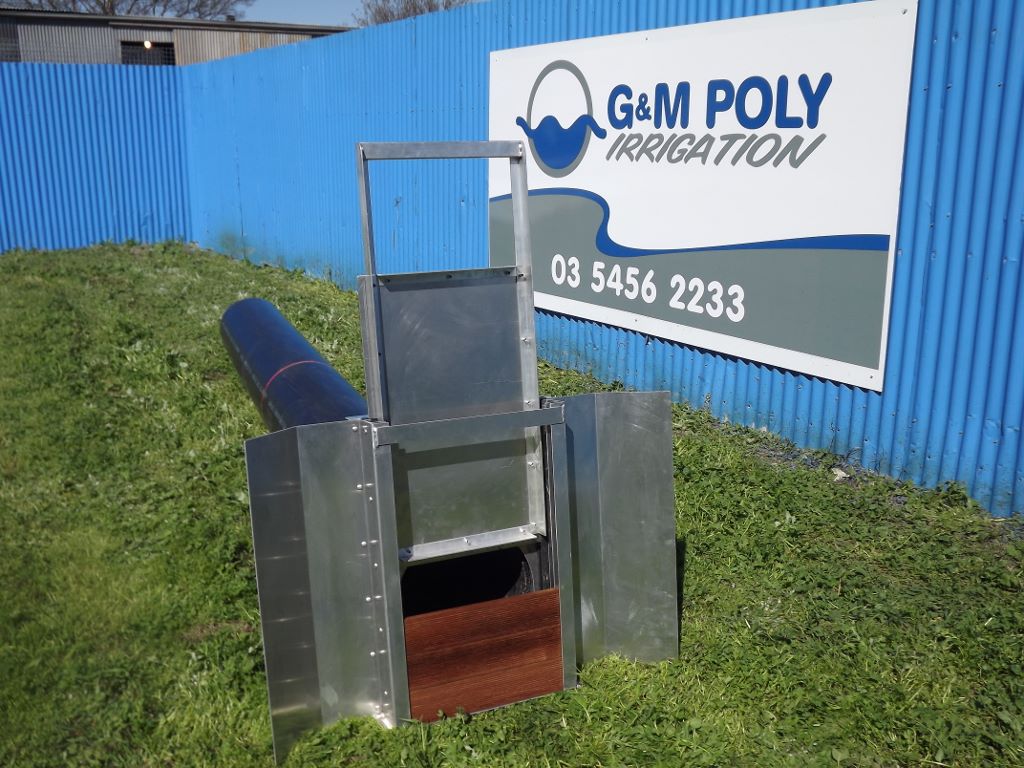

Irrigation bay outlet rice doors - G&M Poly Irrigation
Rice Doors

Water Stop Doorway

  • Constructed form marine grade aluminium
  • Aluminium side walls reduce washouts
  • Removable boards and adjustable slide for variable water flows
  • Available with HDPE pipe sizes 160mm – 1000mm in custom lengths
  • Easily fitted to existing pipes

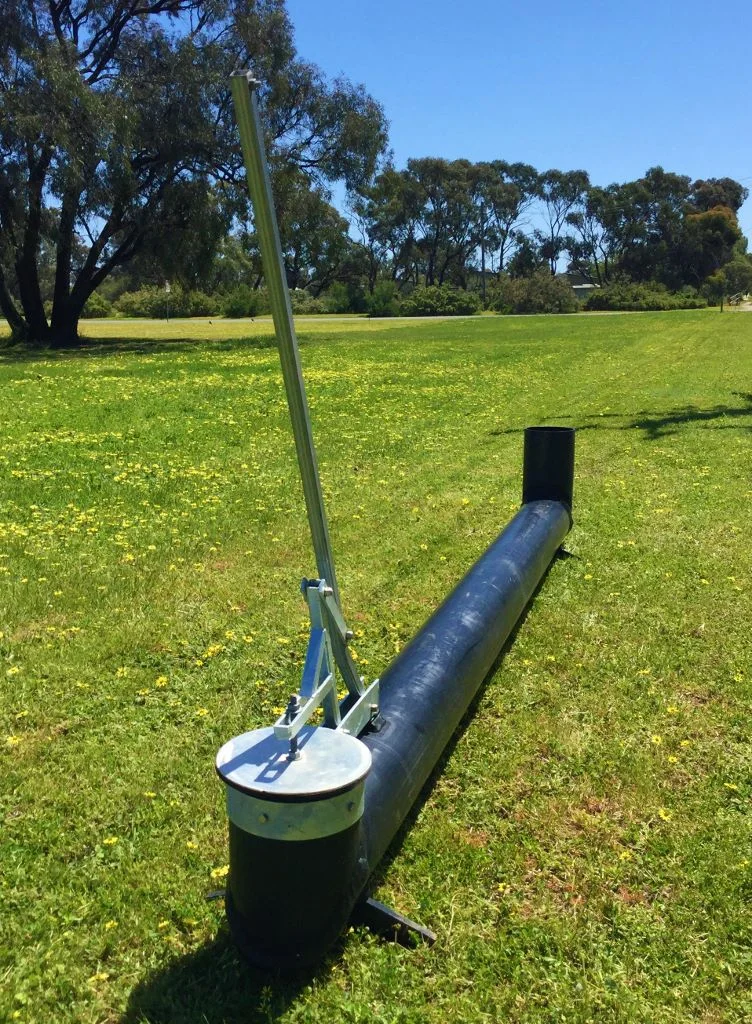

Irrigation bay outlet lockdown flap - G&M Poly Irrigation
Lockdown Flap Outlet with Upturn

Lockdown Flaps & Gravity Flaps

Galvanised Lockdown Flaps

  • Positive closing mechanism ensuring water tight closure
  • Easily fitted to existing pipe
  • Designed for upstream applications in 160mm – 630mm
  • Suitable for downstream pipes of 315mm (12″) or smaller
  • Customised pipe length with straight cut or angled discharge

Gravity Flaps

  • Economical way to provide basic water control
  • Easy to use
  • Suitable for upstream applications, or a one-way valve mechanism at the end of discharge pipes
  • Available in pipe sizes 160mm – 630mm
  • Customised pipe lengths with straight cut or angled discharge

For Poly Pipe Sales, Fabrication and Service Contact G&M Poly

Email us at enquiry@gmpoly.com.au or phone 03 5456 2233
